Configurazione
| Telaio: | Dusty Stealth Air Carbon, movimento centrale pressfit 386 EVO, tubo sterzo conico, passaggio cavi interno HHG, batteria interna integrata non rimovibile, perno posteriore 12x142mm, design trasmissione 1X o 2X, compatibile con freni Flatmount, sensore di velocità integrato nel forcellino |
| Materiale del telaio: | Carbonio |
| Dimensione delle ruote: | 28" |
| Velocità: | 1 x 12 |
| Colore: | Bunker Grey |
| Forcella: | Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork |
| Freni: | Sram Level Silver 2P Stealth, 2 piece flatmount caliper, Centerline IS 6 bolts one-piece rotor, steel-backed organic pad |
| Dischi freno: | 160 / 160 mm |
| Leve freno: | Sram Level Silver, tools-free reach adjust, lever pivot bearings |
| Serie sterzo: | OnOff gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Attacco manubrio: | OnOff gravel 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 70mm, size L: 80mm, XL: 90mm |
| Manubrio: | MDK Urban 1.0 double butted 6061 alloy, rise: 0mm, width: 640mm, 9º backsweep, 0º upsweep, 31.8mm barbore |
| Manopole: | Lizard Skins DSP 30.3 |
| Sella: | Selle Royal Prestige 139mm |
| Reggisella: | Seatpost with integrated Supernova led rear light, diameter 27.2mm, length 400mm |
| Guarnitura: | Sram Apex 1 Wide, S: 170mm, M: 172,5mm, L: 172,5mm, XL: 175mm, Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide |
| Movimento centrale: | Mahle DUB pressfit, sealed bearings, w/ torque sensor |
| Cambio posteriore: | Sram Apex XPLR 12s |
| Comandi cambio: | Sram Trigger GX Eagle, 12s, X-Actuation 1:1 |
| Cassetta: | Sram PG-1231 11-44, 12s |
| Catena: | Sram Apex, 12s, Powerlock |
| Copertone anteriore: | Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead, light tan wall |
| Copertone posteriore: | Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead, light tan wall |
| Mozzo anteriore: | Novatec D041, Boost 12x100mm, sealed bearings, IS 6 bolts |
| Mozzo posteriore: | Mahle X20 Drive Unit, HG freehub |
| Raggi: | CN round stainless steel |
| Cerchi: | MDK-XG1, 23mm internal width, tubeless ready, 28 spokes |
| Display: | Pulsar One Wireless / DUO remote |
| Batteria: | Mahle X20 IX350Wh |
| Motore: | Mahle X20 Drive Unit |
| Fanale anteriore: | 150LUX Front light |
| Pedali: | non incluso nella fornitura |
| Altri dettagli: | Optional external battery: Mahle e185Wh, Mondraker M076 |
| Peso totale massimo ammissibile: | 115 kg (peso del corpo + bici + attrezzi) |
La DUSTY R è dotata di una forcella RockShox Rudy bloccabile con escursione di 40 mm ed è disponibile in una nuova verniciatura in Midnight Blue, Tonic e Teal Green. La nuova DUSTY R segue quindi il modello di punta DUSTY XR in termini di equipaggiamento, che consente le corse off-road più selvagge.
Aggiungi al carrello

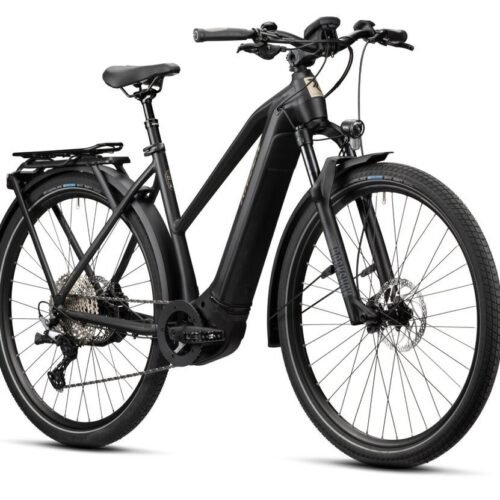

Radon Relazione 8.0 Lady 625
Anche quest'anno, con la RELATE 8.0 625 Lady, puntiamo su componenti di alta qualità e un motore potente! Una e-bike così eccezionale che non troverete un'altra simile in questa fascia di prezzo.
Configurazione
| Telaio: | Prime 6061 Xtralite Full Butted Alloy, Forward Geometry, internal non-removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor |
| Materiale del telaio: | Alumimium |
| Dimensione delle ruote: | 29" |
| Colore: | Bunker Grey / Midnight Blue / Denim Blue |
| Forcella: | RockShox 35 Silver TK 29, 120mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload |
| Corsa sospensione: | 120mm |
| Freni: | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Dischi freno: | 200mm / 180mm |
| Leve freno: | Sram DB8, tool reach adjust, lever pivot bushings |
| Serie sterzo: | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Attacco manubrio: | MDK Urban 35mm 0º, 6061 forged alloy, 31.8mm barbore |
| Manubrio: | MDK Urban 1.0 double butted 6061 alloy, rise: 20mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Manopole: | Onoff Shaper |
| Sella: | MDK urban |
| Reggisella: | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm |
| Guarnitura: | Race Face Aeffect ebike, 165mm, Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Cambio posteriore: | Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
| Comandi cambio: | Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click |
| Cassetta: | Sram PG-1210, 11-50T, 12s |
| Catena: | Sram SX Eagle, 12s, Powerlock |
| Copertoni: | Maxxis Grifter 29x2.5, single compound, 60TPI, wire bead, tanned wall. |
| Mozzo anteriore: | Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts |
| Mozzo posteriore: | Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts |
| Raggi: | CN round stainless steel |
| Cerchi: | MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes |
| Display: | Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller |
| Batteria: | Bosch Powertube 750Wh |
| Motore: | Bosch Performance Line CX Cruise (25Km/h) Smart System |
| Fanale anteriore: | Front light: 50LUX output DC 6-12V, waterproof Alloy cage. |
| Luce posteriore: | Rear Light: Fender Mount, w/ Reflective, e-bike version, 6-12V. |
| Portapacchi: | Alloy MDK rear Rack, Max loading 25kg |
| Altri dettagli: | Derailleur hanger: Mondraker M068, Kickstand: Massload KSA18-40, Fenders: Alloy black MDK custom fenders |
| Peso totale massimo ammissibile: | 150 kg (peso del corpo + bici + attrezzi) |
| Peso: | 24,9 kg |
Configurazione
| Telaio: | Alluminio Superlite, tecnologia di fusione per gravità, geometria comfort efficiente, batteria completamente integrata, tubo sterzo da 1,5", portapacchi integrato 3.0 |
| Materiale del telaio: | alluminio |
| Dimensione delle ruote: | 28" |
| Velocità: | 1 x 12 |
| Colore: | red´n´white |
| Forcella: | SR Suntour XCR32 LO-R Air, Tapered, 15x110mm, 63mm, Lockout |
| Corsa sospensione: | 63mm |
| Freni: | Shimano BR-MT420, Hydr. Disc Brake (180/180) |
| Dischi freno: | 180mm / 180mm |
| Serie sterzo: | ACROS AZF-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Attacco manubrio: | CUBE Comfort Stem Pro, 31.8mm, Adjustable |
| Manubrio: | CUBE Comfort Trail Bar, 700mm |
| Manopole: | ACID Travel Comfort |
| Sella: | Natural Fit Sequence Comfort |
| Reggisella: | CUBE Suspension Seatpost HD, 30.9mm |
| Collarino reggisella: | CUBE Screwlock Semi Integrated w/ Hidden Tool, 36mm |
| Guarnitura: | ACID E-Crank, 40T, 170mm |
| Cambio posteriore: | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Comandi cambio: | Shimano Deore SL-M6100-IR, Direct Attach |
| Cassetta: | Shimano Deore CS-M6100, 10-51T |
| Catena: | Shimano CN-M6100 |
| Copertoni: | Schwalbe Energizer Plus, Performance, Green Guard, 55-622 |
| Mozzo anteriore: | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
| Mozzo posteriore: | Shimano FH-MT401, QR, Centerlock |
| Cerchi: | CUBE EX23, 36H, Disc, Tubeless Ready |
| Display: | Bosch Intuvia 100, Bosch LED Remote |
| Batteria: | Bosch PowerTube 625 |
| Caricabatteria: | Bosch 2A |
| Motore: | Bosch Drive Unit Performance Generation 3 (75Nm) Cruise (250Watt), Smart System |
| Fanale anteriore: | CUBE Shiny 50 Lux, 12V, DC |
| Luce posteriore: | ACID Mudguard Rear Light PRO-E, 12V, DC |
| Portapacchi: | ACID Integrated Carrier 3.0, CUBE Adapter Compatible |
| Pedali: | non inclusi |
| Altri dettagli: | parafanghi, cavalletto, campanello |
| Peso totale massimo ammissibile: | 135 kg (peso del corpo + bici + attrezzi) |
| Peso: | a partire da 26,5 kg |

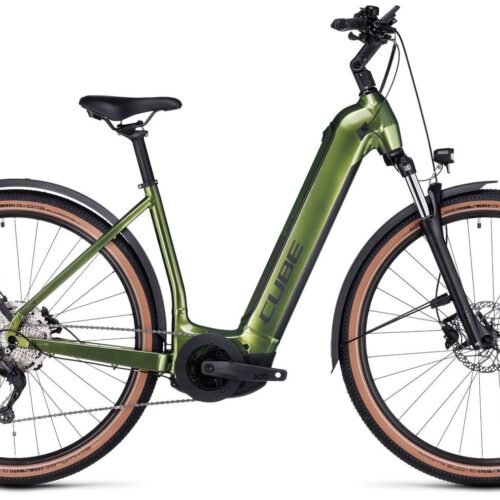

Configurazione
| Telaio: | Aluminium Superlite, Gravity Casting Technology, Agile Comfort Geometry, Full Integrated Battery, Boost 148, Advanced Internal Cable Routing, 1.5 Headtube |
| Materiale del telaio: | alluminio |
| Dimensione delle ruote: | 28" |
| Velocità: | 1 x 10 |
| Colore: | shinymoss´n´black |
| Forcella: | SR Suntour NVX30 Coil, 100mm |
| Corsa sospensione: | 100mm |
| Freni: | Shimano BR-MT200, Hydr. Disc Brake |
| Dischi freno: | 180/180 mm |
| Serie sterzo: | M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Attacco manubrio: | CUBE Performance Stem Pro, 31.8mm |
| Manubrio: | CUBE Comfort Trail Bar, 720mm |
| Manopole: | ACID Hybrid Tour |
| Sella: | Natural Fit Sequence Comfort |
| Reggisella: | CUBE Performance Post, 30.9mm |
| Collarino reggisella: | CUBE Screwlock Semi Integrated w/ Hidden Tool, 36mm |
| Guarnitura: | ACID E-Crank, 38T, 175mm |
| Cambio posteriore: | Shimano Deore RD-M5120-SGS, 10-Speed |
| Comandi cambio: | Shimano Deore SL-M4100, Rapidfire-Plus |
| Cassetta: | Shimano Deore CS-M4100, 11-46T |
| Catena: | KMC X10 |
| Copertoni: | Schwalbe G-One Allround, RaceGuard, 57-622 |
| Mozzo anteriore: | Shimano HB-TX505, QR, Centerlock |
| Mozzo posteriore: | Shimano FH-MT400-B, 12mm, Boost, Centerlock |
| Cerchi: | CUBE EX23, 32H, Disc, Tubeless Ready |
| Display: | Bosch Intuvia 100, Bosch LED Remote |
| Batteria: | Bosch PowerTube 750 |
| Caricabatteria: | Bosch 4A |
| Motore: | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
| Fanale anteriore: | CUBE Shiny 50 Lux, 12V, DC |
| Luce posteriore: | ACID Mudguard Rear Light PRO-E, 12V, DC |
| Pedali: | non inclusi |
| Altri dettagli: | parafanghi, cavalletto, campanello |
| Peso totale massimo ammissibile: | 140 kg (peso del corpo + bici + attrezzi) |
| Peso: | a partire da 25,2 kg |

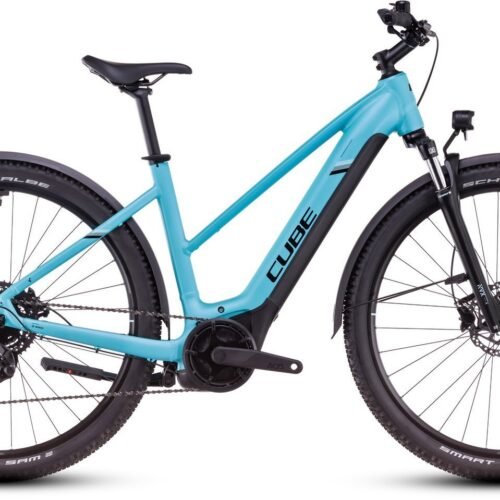

Configurazione
| Telaio: | Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Full Integrated Battery, 1.5 Headtube |
| Materiale del telaio: | alluminio |
| Dimensione delle ruote: | 28" |
| Velocità: | 1 x 9 |
| Colore: | swimmingpool´n´black |
| Forcella: | SR Suntour NVX30 Coil, 63mm |
| Corsa sospensione: | 63mm |
| Freni: | Shimano BR-MT200, Hydr. Disc Brake |
| Dischi freno: | 180/180 mm |
| Serie sterzo: | ACROS AZF-1031, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Attacco manubrio: | CUBE Performance Stem Pro, 31.8mm |
| Manubrio: | CUBE Comfort Trail Bar, 700mm |
| Manopole: | ACID Hybrid Tour |
| Sella: | ACID Sequence Pro Plus |
| Reggisella: | CUBE Performance Post, 30.9mm |
| Collarino reggisella: | CUBE Screwlock Semi Integrated w/ Hidden Tool, 36mm |
| Guarnitura: | ACID Trekking Hybrid, 38T |
| Cambio posteriore: | Shimano Cues RD-U4000-GS, 9-Speed |
| Comandi cambio: | Shimano Cues SL-U4010, Rapidfire-Plus |
| Cassetta: | Shimano Cues CS-LG300, 11-46T |
| Catena: | KMC eGlide |
| Copertoni: | Schwalbe Smart Sam, Active, K-Guard, 54-622 |
| Mozzo anteriore: | Shimano HB-QC300, QR, Centerlock |
| Mozzo posteriore: | Shimano FH-QC300-HM, QR, Centerlock |
| Cerchi: | CUBE EX25, 32H, Disc, Tubeless Ready |
| Display: | Bosch Purion 200 w/ Integrated Display |
| Batteria: | Bosch PowerTube 500 |
| Caricabatteria: | Bosch 2A |
| Motore: | Bosch Drive Unit Performance Generation 3 (75Nm) Cruise (250Watt), Smart System |
| Fanale anteriore: | ACID Front Light PRO-E 60 X-Connect, 12V, DC |
| Luce posteriore: | ACID Mudguard Rear Light PRO-E, 12V, DC |
| Pedali: | ACID PP MTB |
| Altri dettagli: | parafanghi, cavalletto, campanello |
| Peso totale massimo ammissibile: | 140 kg (peso del corpo + bici + attrezzi) |
| Peso: | a partire da 25 kg |
Configurazione
| Telaio: | Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube |
| Materiale del telaio: | alluminio |
| Dimensione delle ruote: | 28" |
| Velocità: | 1 x 12 |
| Colore: | lizard´n´juniper |
| Forcella: | Fox 34 Float Sport AWL , Tapered, 15x110mm, E-Bike Optimized, 100mm |
| Corsa sospensione: | 100 mm |
| Freni: | Shimano XT BR-M8120, Hydr. Disc Brake |
| Dischi freno: | 180/180 |
| Serie sterzo: | ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC |
| Attacco manubrio: | CUBE Comfort Stem Pro, 31.8mm, Adjustable |
| Manubrio: | CUBE Comfort Trail Bar, 700mm |
| Manopole: | ACID Travel Comfort |
| Sella: | ACID Sequence Pro Plus |
| Reggisella: | CUBE Suspension Seatpost HD, 31.6mm |
| Guarnitura: | ACID MTB Hybrid Pro |
| Cambio posteriore: | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Comandi cambio: | Shimano Deore SL-M6100-IR, Direct Attach |
| Cassetta: | Shimano Deore CS-M6100, 10-51T |
| Catena: | KMC e12 |
| Copertoni: | Schwalbe Energizer Plus, Performance, Green Guard, 55-622 |
| Mozzo anteriore: | CUBE Engineered By Newmen, 15mm, Boost, Centerlock |
| Mozzo posteriore: | CUBE Engineered By Newmen, 12mm, Boost, Centerlock |
| Cerchi: | CUBE EX25, 32H, Disc, Tubeless Ready |
| Display: | Bosch LED Remote, Bosch Kiox 500 |
| Batteria: | Bosch PowerTube 800 |
| Caricabatteria: | Bosch 2A |
| Motore: | Bosch Drive Unit Performance Line CX 85Nm Gen.5, (BDU38), Smart System |
| Fanale anteriore: | ACID Front Light PRO-E 150 X-Connect, 12V, DC |
| Luce posteriore: | ACID Mudguard Rear Light PRO-E, 12V, DC |
| Portapacchi: | ACID Integrated Carrier 3.0, CUBE Adapter Compatible |
| Pedali: | ACID PP MTB |
| Altri dettagli: | parafanghi, cavalletto, campanello |
| Peso totale massimo ammissibile: | 160 kg (peso del corpo + bici + attrezzi) |
| Peso: | a partire da 27,1 kg |
Configurazione
| Telaio: | RENDER 750 (Maximale Reifenbreite: 2.6"; Powertube Akku 750Wh horizontal; Schaltauge: UDH) |
| Materiale del telaio: | Carbon Hauptrahmen/ Aluminium Hinterbau |
| Dimensione delle ruote: | 29" |
| Velocità: | 1 x 12 |
| Colore: | galaxy/ deepblack |
| Forcella: | Fox 36 Performance, FIT GRIP 3-Pos., E-Tuned, Boost (Nachlauf: 44mm) |
| Ammortizzatore: | Fox Float X Performance, 2-Pos., EVOL LV (Einbaumaß: 210 x 55mm; Buchsenmaß: Oben: 8 x 30mm, Unten: DU-Bushing 12.7mm) |
| Corsa sospensione: | 160mm/ 140mm |
| Freni: | Shimano XT BR-M8120 |
| Dischi freno: | Shimano SM-RT66, 203/203mm, 6-bolt |
| Serie sterzo: | Acros Block-Lock, ZS56/ZS56 |
| Attacco manubrio: | Race Face Æffect R, Ø35mm (M: 40mm; L: 40mm; XL: 50mm) |
| Manubrio: | Race Face Æffect R, 35 x 780mm, 20mm rise |
| Manopole: | SDG Thrice |
| Sella: | SDG Bel Air V3 Max |
| Reggisella: | SDG Tellis V2, Ø31.6mm (M: 105-125mm Hub; L: 130-150mm Hub; XL: 150-170mm Hub) |
| Guarnitura: | e*thirteen e*spec Plus, 165mm, e*thirteen Chainring Alu, 34T |
| Cambio posteriore: | Shimano XT RD-M8100-SGS, 12-speed |
| Comandi cambio: | Shimano XT SL-M8100-IR, I-Spec EV |
| Guidacatena: | Reverse Components Flip-Guide, direct mount |
| Cassetta: | Shimano Deore CS-M6100, 10-51 |
| Catena: | Shimano Deore CN-M6100 |
| Copertone anteriore: | Maxxis Minion DHF, 3C, MaxxTerra, EXO+, TR, 29" x 2.5" WT |
| Copertone posteriore: | Maxxis Minion DHR II, 3C, MaxxTerra, EXO+, TR, 29" x 2.4" WT |
| Coppia di ruote: | SUNringlé Düroc SD37 Expert, 110/148mm (Felgenhöhe: 17mm; Maulweite: 32mm; Tubeless ready: ✔; Tubeless Ventile: nicht enthalten; Tubeless Felgenband: ✔; Tubeless Milch: nicht enthalten) |
| Display: | Bosch System Controller / Mini Remote |
| Batteria: | Bosch Powertube 750Wh |
| Caricabatteria: | Bosch Charger 4A |
| Motore: | Bosch Performance Line CX Gen4 Smart System |
| Pedali: | non incluso nella fornitura |
| Peso totale massimo ammissibile: | 135 kg (peso del corpo + bici + attrezzi) |
| Peso: | ab 24,35 kg |
Configurazione
| Telaio: | RENDER AL, Max. width tire 2.6", Powertube Capacity 750Wh |
| Materiale del telaio: | Alloy main frame / Aluminium rear triangle |
| Dimensione delle ruote: | 29" |
| Velocità: | 1 x 12 |
| Colore: | ice / thunder |
| Forcella: | RockShox 35 Silver R, Coil, Boost, Rake 44mm |
| Ammortizzatore: | RockShox Deluxe Select, Debonir+, Size 210 x 55mm, Bushing Size Body 8 x 20mm, Shaft DU-Bushing 12.7mm |
| Corsa sospensione: | 160mm/ 140mm |
| Freni: | Magura MT5 Thirty |
| Dischi freno: | Magura MDR-C, 203/203mm, 6-bolt (centerlock adapter) |
| Serie sterzo: | Acros Block-Lock, ZS56/ZS56 |
| Attacco manubrio: | Race Face Ride, Ø35mm (M: 50mm, L: 50mm, XL: 60mm) |
| Manubrio: | Race Face Chester, 35 x 780mm, 20mm rise |
| Manopole: | ACID React Pro |
| Sella: | Natural Fit Venec Lite |
| Reggisella: | Radon Dropper, 31.6mm (M 130mm travel, L 130mm travel, XL 130mm travel) |
| Guarnitura: | Acid E-Crank, 165mm, SRAM Eagle X-SYNC 2 Chainring, 34T |
| Cambio posteriore: | Sram SX Eagle, 12-speed |
| Comandi cambio: | SRAM SX Eagle, Single-Click |
| Guidacatena: | Reverse Components Flip-Guide, direct mount |
| Cassetta: | SRAM PG-1210 Eagle, 11-50 |
| Catena: | Sram SX Eagle |
| Copertone anteriore: | Maxxis Minion DHF, 3C, Maxterra, EXO, TR, 29" x 2.5" WT |
| Copertone posteriore: | Maxxis Minion DHR II, 3C, Maxterra, EXO, TR, 29" x 2.4" WT |
| Mozzo anteriore: | Shimano Alivio HB-MT400-B, 110mm |
| Mozzo posteriore: | Shimano Alivio FH-MT400-B, 148mm |
| Raggi: | DT Swiss Factory |
| Cerchi: | Alexrims MD30, 30mm |
| Display: | Bosch LED Remote |
| Batteria: | Bosch PowerTube 625Wh |
| Caricabatteria: | Bosch Standard Charger 4A |
| Motore: | Bosch Performance Line CX Gen4 Smart System / 85Nm |
| Pedali: | non incluso nella fornitura |
| Peso totale massimo ammissibile: | 135 kg (peso del corpo + bici + attrezzi) |
| Peso: | a partire da 25,10 kg |

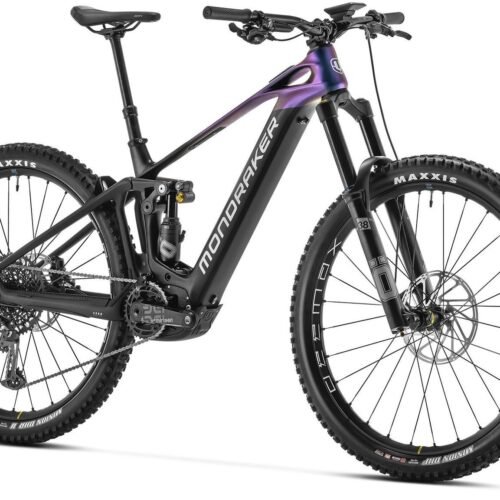

Configurazione
| Telaio: | Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity |
| Materiale del telaio: | Carbonio |
| Dimensione delle ruote: | 29" |
| Velocità: | 1 x 12 |
| Colore: | Black / Polaris / Racing Silver |
| Forcella: | Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
| Ammortizzatore: | Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
| Freni: | Sram Code Silver Stealth, oversized 4-piston caliper, Centerline 220mm/200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Leve freno: | Sram Code Silver Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust |
| Serie sterzo: | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
| Attacco manubrio: | ONOFF Krypton FG 30mm, CNC, 31.8mm barbore |
| Manubrio: | ONOFF Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Manopole: | Onoff Desert, 1lock-on, 135mm |
| Sella: | FIZIK Terra Aidon X5 145mm |
| Reggisella: | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm |
| Guarnitura: | E.13 TRS Race carbon ebike, 165mm |
| Cambio posteriore: | Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-actuation 1:1 |
| Comandi cambio: | Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click |
| Cassetta: | Sram XG-1275, 10-52T, 12s |
| Catena: | Sram NX Eagle, 12s, Powerlock |
| Copertone anteriore: | Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Copertone posteriore: | Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Mozzo anteriore: | Mavic, Boost 15x110mm, IS 6 bolts |
| Mozzo posteriore: | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub |
| Raggi: | Mavic straight-pull double butted, contactless lacing |
| Cerchi: | Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes |
| Display: | Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller |
| Batteria: | Bosch Powertube 750Wh |
| Motore: | Bosch Performance Line CX-Race (25Km/h), Smart System |
| Pedali: | non incluso nella fornitura |
| Altri dettagli: | Derailleur hanger Mondraker M068 |
| Peso totale massimo ammissibile: | 150 kg (peso del corpo + bici + attrezzi) |
| Peso: | 23,4 kg |
Configurazione
| Telaio: | Heckler Carbon C |
| Materiale del telaio: | Carbonio |
| Dimensione delle ruote: | 29" |
| Velocità: | 1 x 12 |
| Colore: | Gloss Heirloom Red |
| Forcella: | FOX 36 Float Performance Elite, 160mm |
| Ammortizzatore: | RockShox Super Deluxe Select+ 210x55 |
| Corsa sospensione: | 160 mm / 150 mm |
| Freni: | SRAM Code RS |
| Dischi freno: | Avid Centerline 200mm / 200mm |
| Serie sterzo: | Cane Creek 40 IS Integrated Headset |
| Attacco manubrio: | Burgtec Enduro MK3, 42mm |
| Manubrio: | Santa Cruz e35 Carbon Bar, 800mm |
| Manopole: | Santa Cruz Bicycles House Grips |
| Sella: | WTB Silverado Medium CroMo |
| Reggisella: | FOX Transfer Performance Elite Dropper, 31.6 |
| Guarnitura: | Shimano EM600 Crank Arms 165mm |
| Cambio posteriore: | SRAM GX AXS Eagle, 12spd |
| Comandi cambio: | GX AXS Controller |
| Guidacatena: | E13 E-Spec+ AL |
| Cassetta: | SRAM XG1275 Eagle, 12spd, 10-50t |
| Catena: | SRAM GX Eagle, 12spd |
| Copertone anteriore: | Maxxis Assegai 29"x2.5" 3C MaxxGrip, EXO+, TR |
| Copertone posteriore: | Maxxis Minion DHR II 29"x2.4"WT, 3C MaxxTerra, EXO+, TR |
| Mozzo anteriore: | i9 1/1, 15x110, 32h |
| Mozzo posteriore: | i9 1/1, 12x148, XD, 32h |
| Cerchi: | RaceFace ARC HD 30 29" |
| Display: | Shimano Display Unit SC-E7000 |
| Batteria: | Darfon 720Wh Integrated Battery |
| Caricabatteria: | Darfon Charger, Powerpack 2 Battery |
| Motore: | Shimano Drive Unit DU-EP800 |
| Pedali: | non incluso nella fornitura |
| Altri dettagli: | Reserve Tubeless Sealant |
| Peso totale massimo ammissibile: | 155 kg (peso del corpo + bici + attrezzi) |
| Peso: | 22.21 kg |

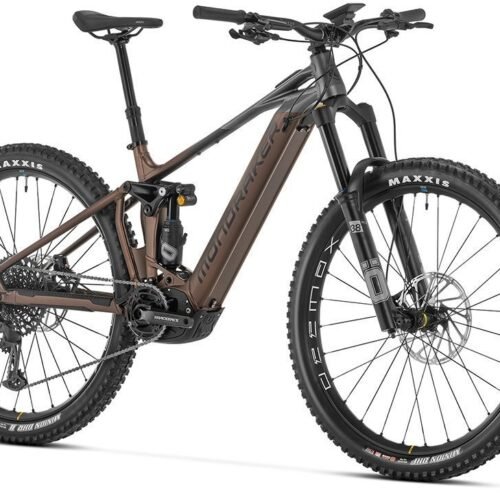

Configurazione
| Telaio: | Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity s |
| Materiale del telaio: | alluminio |
| Dimensione delle ruote: | 29" |
| Velocità: | 1 x 12 |
| Colore: | Bronze - Dark Gray |
| Forcella: | Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
| Ammortizzatore: | Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
| Corsa sospensione: | 170 mm / 150 mm |
| Freni: | Sram Code Silver Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Dischi freno: | 220 mm / 200 mm |
| Leve freno: | Sram Code Silver Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust |
| Serie sterzo: | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Attacco manubrio: | ONOFF Krypton FG 30mm, CNC, 31.8mm barbore |
| Manubrio: | ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Manopole: | Onoff Desert, 1lock-on, 135mm |
| Sella: | FIZIK Terra Aidon X5 145mm |
| Reggisella: | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm |
| Guarnitura: | Race Face Aeffect ebike, 165mm |
| Cambio posteriore: | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Comandi cambio: | Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click |
| Cassetta: | Sram XG-1275, 10-52T, 12s |
| Catena: | Sram NX Eagle, 12s, Powerlock |
| Copertone anteriore: | Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Copertone posteriore: | Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Mozzo anteriore: | Mavic, Boost 15x110mm, IS 6 bolts |
| Mozzo posteriore: | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub |
| Raggi: | Mavic straight-pull double butted, contactless lacing |
| Cerchi: | Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes |
| Display: | Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller |
| Batteria: | Bosch Powertube 750Wh |
| Motore: | Bosch Performance Line CX Cruise (25Km/h) Smart System |
| Pedali: | Non incluso |
| Altri dettagli: | Derailleur hanger: Mondraker M068 |
| Peso: | 25,3 kg |
Configurazione
| Telaio: | Crafty Stealth Air full Carbon, sistema di sospensione Zero ottimizzato per e-bike, escursione 150 mm, geometria Forward, batteria interna non rimovibile, perno posteriore Boost 12x148 mm, tubo sterzo conico, leveraggio superiore monoblocco, passaggio cavi interno HHG, capacità MAX |
| Materiale del telaio: | Carbonio |
| Dimensione delle ruote: | 29" |
| Colore: | Bunker Grey - Denim Blue - Dense Yellow |
| Forcella: | Fox 38 29 Float GRIP Performance, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
| Ammortizzatore: | Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
| Freni: | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Dischi freno: | 200 mm / 200 mm |
| Leve freno: | Sram DB8, tool reach adjust, lever pivot bushings |
| Serie sterzo: | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
| Attacco manubrio: | ONOFF Krypton FG 30mm, CNC, 31.8mm barbore |
| Manubrio: | Onoff Krypton 1.0 double butted 7075-T6 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Manopole: | Onoff Desert, 1lock-on, 135mm |
| Sella: | FIZIK Terra Aidon X5 145mm |
| Reggisella: | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm |
| Guarnitura: | Race Face Aeffect ebike, 165mm |
| Cambio posteriore: | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Comandi cambio: | Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click |
| Cassetta: | Sram PG-1230, 11-50T, 12s |
| Catena: | Sram NX Eagle, 12s, Powerlock |
| Copertone anteriore: | Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Copertone posteriore: | Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Coppia di ruote: | Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
| Mozzo anteriore: | Mavic, Boost 15x110mm, IS 6 bolts |
| Mozzo posteriore: | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub |
| Raggi: | Mavic J-bend double butted, contactless lacing |
| Display: | Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller |
| Batteria: | Bosch Powertube 750Wh |
| Motore: | Bosch Performance Line CX (25km/h) Smart System |
| Pedali: | non incluso nella fornitura |
| Altri dettagli: | Derailleur hanger: SRAM UDH, Shock adjustment: Compression: medium, rebound: medium, volume spacer 0.2 |
| Peso totale massimo ammissibile: | 150 kg (peso del corpo + bici + attrezzi) |
| Peso: | 24.2 kg |

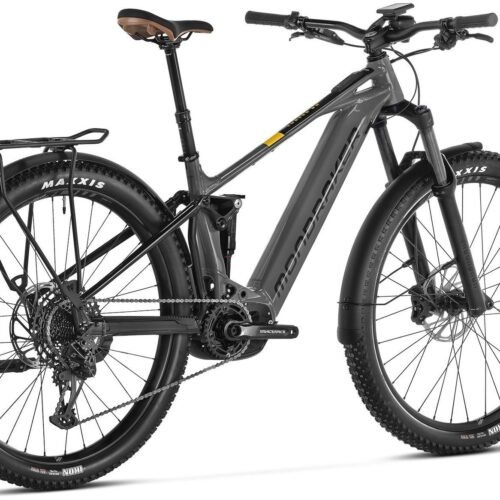

Configurazione
| Telaio: | Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 140mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity s |
| Materiale del telaio: | alluminio |
| Dimensione delle ruote: | 29" |
| Velocità: | 1 x 12 |
| Colore: | Nimbus Grey / Black / Dense Yellow |
| Forcella: | RockShox 35 Silver TK 29, 150mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload |
| Ammortizzatore: | RockShox Deluxe Select R DebonAir, 205x60mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
| Corsa sospensione: | 150 mm / 140 mm |
| Freni: | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Dischi freno: | 200mm / 200mm |
| Leve freno: | Sram DB8, tool reach adjust, lever pivot bushings |
| Serie sterzo: | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Attacco manubrio: | MDK Urban 35mm 0º, 6061 forged alloy, 31.8mm barbore |
| Manubrio: | ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Manopole: | Onoff Twin, 1lock-on, 135mm |
| Sella: | MDK urban |
| Reggisella: | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm |
| Guarnitura: | Race Face Aeffect ebike, 165mm |
| Cambio posteriore: | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Comandi cambio: | Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click |
| Cassetta: | Sram PG-1210, 11-50T, 12s |
| Catena: | Sram SX Eagle, 12s, Powerlock |
| Copertoni: | Maxxis Ikon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
| Mozzo anteriore: | Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts |
| Mozzo posteriore: | Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts |
| Raggi: | CN round stainless steel |
| Cerchi: | MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes |
| Display: | Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller |
| Batteria: | Bosch Powertube 750Wh |
| Motore: | Bosch Performance Line CX Cruise (25Km/h) Smart System |
| Fanale anteriore: | 50LUX output DC 6-12V, waterproof Alloy cage |
| Luce posteriore: | Fender Mount, w/ Reflective, e-bike version, 6-12V |
| Portapacchi: | Alloy MDK rear Rack, Max loading 25kg |
| Pedali: | non incluso nella fornitura |
| Altri dettagli: | Derailleur hanger: Mondraker M068, Kickstand: Massload KSA18-40, Fenders: Alloy black MDK custom fenders |
| Peso totale massimo ammissibile: | 150 kg (peso del corpo + bici + attrezzi) |
| Peso: | 26.5 kg |
Configurazione
| Telaio: | Carbon CC MX 170mm Travel VPP™ |
| Materiale del telaio: | Carbonio |
| Dimensione delle ruote: | 29" / 27.5" |
| Colore: | Gloss Carbon |
| Forcella: | FOX 38 Float Performance Elite, 170mm |
| Ammortizzatore: | RockShox Super Deluxe Select+ 230x62.5 |
| Corsa sospensione: | 170mm / 170mm |
| Freni: | SRAM Code RS |
| Dischi freno: | Avid Centerline 220 mm / 200 mm |
| Serie sterzo: | Cane Creek 40 IS Integrated Headset |
| Attacco manubrio: | Burgtec Enduro MK3, 42mm |
| Manubrio: | Santa Cruz e35 Carbon Bar, 800mm |
| Manopole: | Santa Cruz Bicycles House Grips |
| Sella: | WTB Silverado Medium CroMo |
| Reggisella: | FOX Transfer Factory Dropper, 31.6 |
| Guarnitura: | Shimano EM600 Crank Arms 165mm |
| Cambio posteriore: | SRAM GX AXS Eagle, 12spd |
| Comandi cambio: | GX AXS Controller |
| Guidacatena: | E13 E-Spec+ AL |
| Cassetta: | SRAM XG1275 Eagle, 12spd, 10-50t |
| Catena: | SRAM GX Eagle, 12spd |
| Copertone anteriore: | Maxxis Assegai 29"x2.5", 3C MaxxGrip, Double Down, TR |
| Copertone posteriore: | Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, Double Down, TR |
| Mozzo anteriore: | i9 1/1, 15x110, 32h |
| Mozzo posteriore: | i9 1/1, 12x148, XD, 32h |
| Cerchi: | RaceFace ARC HD 30 29" [Front], RaceFace ARC HD 30 27.5" [Rear] |
| Batteria: | Shimano 630Wh Integrated |
| Motore: | Shimano Drive Unit DU-EP800 |
| Pedali: | non incluso nella fornitura |
| Altri dettagli: | Shimano Battery Charger, Powerpack 1 Battery |
| Peso totale massimo ammissibile: | 155 kg (peso del corpo + bici + attrezzi) |
| Peso: | 22,53 kg |
Iscriviti per ricevere le nostre email con informazioni su nuovi articoli, offerte e molto altro.
Registrati subito per ricevere gli ultimi aggiornamenti su promozioni e coupon. Non preoccuparti, non facciamo spam!
Scopri Veloarben, il tuo negozio online dedicato agli appassionati di ciclismo. Esplora la nostra selezione di biciclette di qualità e contattaci all’indirizzo contatta@veloarben.it per qualsiasi domanda.
Hai bisogno di aiuto?
+393500584798
Dal lunedì al venerdì: 9:00 – 18:00
Sabato: 11:00 – 15:00
contatta@veloarben.it
Il nostro negozio
Vicolo del Tinaio, 7
53014 Monteroni d’Arbia (SI), Italia
- Consegna gratuita
- Reso prodotto 14 giorni
Copyright 2026 veloarben.it. ©Tutti i prezzi indicati includono l'IVA.
